cs2010 Notes: 08 Circut Design

·52 words·1 min·
  • Introduce bar over variable for “not” and dot-free notation for multiply.
  • One bit adder (two outputs: sum and carry).
  • Talk about 2-bit addition.
  • Truth table for 2-bit adder.
  • See if you can simplify with a K-map.
  • Pull out sum-of-products and product-of-sums formulas.
  • Three input one bit adder; ripple adder.
  • Three bit adder.

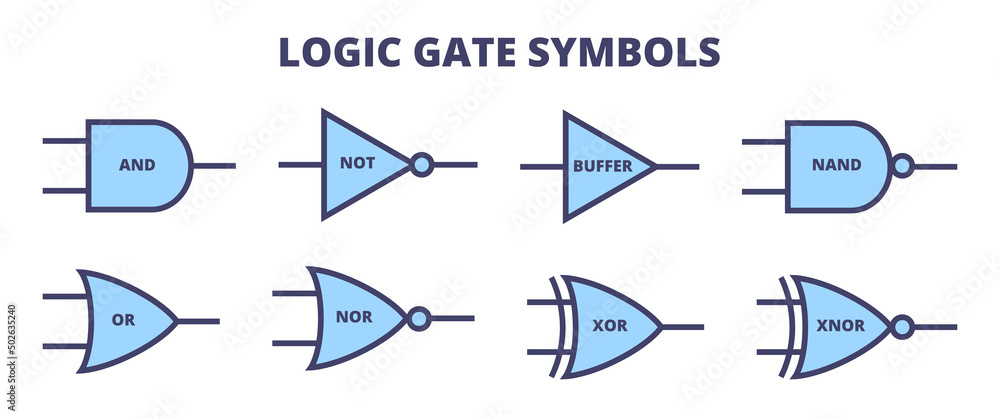

gates
